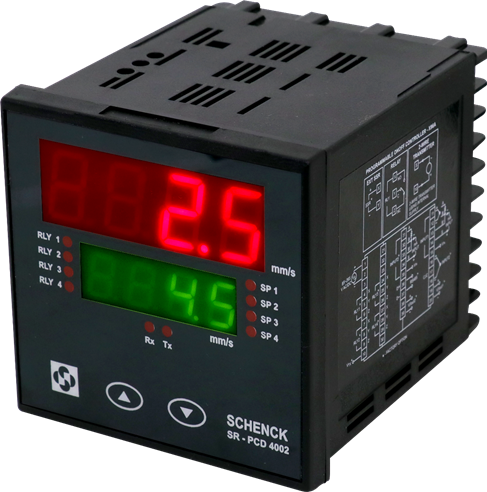

Dual Channel Controller - SR PCD 4002

Application: Motors, Pumps, Fans, Boilers, Compressors, Blowers, Gear Box, Separators, Crushers, Mill Vibration, Generators, Turbines

SR PCD 4002:

Dual Channel microprocessor based monitoring unit
Retransmission output available 4…20mA.
Tactile keys for limit setting.
High accuracy.
Two adjustable limit relays for alarm and trip.

-------------------------------------------------------------------------------------------

PERFORMANCE
Measured Value	RMS Value Velocity or Peak Value Displacement
Input	Dual Channel with 4 Relay output
Freq. Range	2-1000Hz
Analog Output	4-20mA
Accuracy	<3%
ELECTRICAL
Working Resistance	≤600Ω
Load Resistance	≥600Ω
Display Type	4 digit, 7 segment
Supply Voltage	85-265V AC or 20-35 VDC
MECHANICAL
Case Material	ABS Plastic
Dimension	150x96x96 mm L×W×H
Mounting	Panel Mount
Keys Type	Tactile
ENVIRONMENTAL
Operating Temperature	- 30º …. + 65º C
Storage Temperature	- 40º …..+ 100º C
Sealing	IP65
Humidity	Max. 95 % , non-condensing

-------------------------------------------------------------------------------------------
