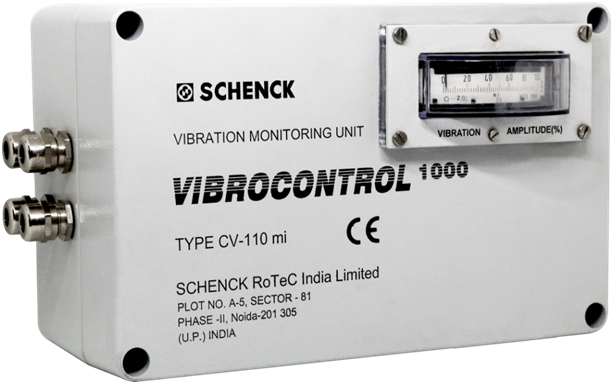

Single Channel Controller - CV110mi

Application: Motors, Pumps, Fans, Boilers, Compressors, Blowers, Gear Box, Separators, Crushers, Mill Vibration, Generators, Turbines

CV110mi:

• Single Channel monitoring unit
• Convert the pick-up signal into the parameter to be monitored (Vibration velocity/Displacement)
• Output available are 0/4…20mA and 0-10VDC.
• Self-test facility which trips the OK relay if there is any fault in the pick-up circuitry, and ensures that no false signal will process.
• Has in-built isolator.
• Has in-built analog meter for continuous vibration reading in the field.
• Two adjustable limit relays for alarm and trip.
• Time delay facility for alarm and trip, relay to present false signal.

->Download CV-110mi Datasheet

->Download VMS Catalog

-------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------
