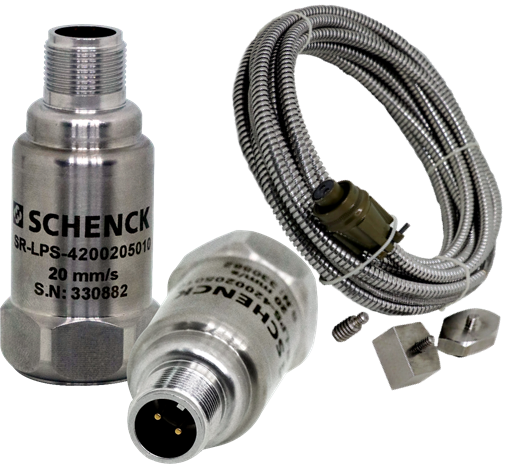

Velocity- Loop Powered Sensor – SR LPS 420

Application: Motors, Pumps, Fans, Boilers, Compressors, Blowers, Gear Box, Separators, Crushers, Mill Vibration, Generators, Turbines

SR LPS 420:

  • Single output loop powered piezo electric vibration sensor.
  • Direct 4-20mA output proportional to RMS velocity to PLC, DCS, SCADA
  • X Y Z direction mountable.
  • Various connector options.


->Download SR LPS 420 Braided Cable

->Download SR LPS 420 Connector

-------------------------------------------------------------------------------------------

PERFORMANCE

Measured Value

RMS Value Velocity

Input

Single Channel

Freq. Range

10-1000Hz ISO 10816

Analog Output

4-20mA

Accuracy

<3%

ELECTRICAL

Working Resistance

≤600Ω

Out put current

4-20 mA
Settling time

2 sec

Supply Voltage

24 VDC

Case isolation

>108Ω at 500 Volts

MECHANICAL

Case Material

Stainless Steel

Sensing element

PZT / Compression

Mounting torque

8 N-m

Weight

135 gm (Nom)

ENVIRONMENTAL

Operating Temperature

- 25º …. + 90º C

Maximum Shock

5000 g

Sealing

IP67

Humidity

Max. 95 % , non-condensing

-------------------------------------------------------------------------------------------
