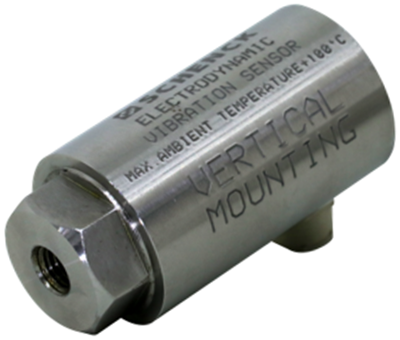

Vertical Vibration Sensor VS 069

Application: Motors, Pumps, Fans, Boilers, Compressors, Blowers, Gear Box, Separators, Crushers, Mill Vibration, Generators, Turbines

VS 069:

Vertical direction electrodynamic vibration transducer for measuring vertical vibration.
Additional supply not required.
Large vibration measuring range.

-------------------------------------------------------------------------------------------

PERFORMANCE VS 069
Measured Value	RMS Value Velocity or Peak Value Displacement
Direction	Vertical
Measuring Principle	Electro-dynamic
Sensitivity	100mV /mm / sec. + 100%
Freq. Range	1-2000 Hz
Natural Frequency	8 Hz + 10%
Max Displacement	+0.45 mm
ELECTRICAL
Internal Impedance	4KΩ+ 10%
Max Signal Length	200 Meter
MECHANICAL
Case Material	Stainless Steel
Weight	0.5 Kg
ENVIRONMENTAL
Operating Temperature	- 40º …. + 100º C
Storage Temperature	- 40º …. + 100º C
Sealing	IP66

-------------------------------------------------------------------------------------------
