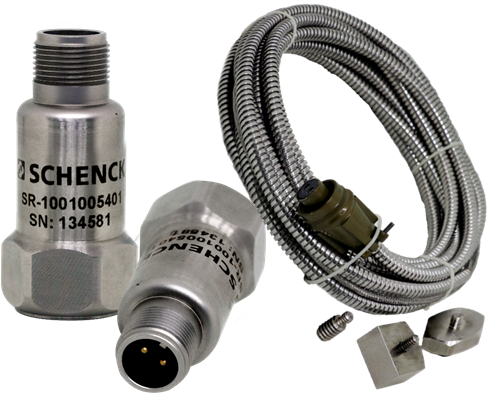

Vibration Accelerometer Sensor SR 100

Application: Motors, Pumps, Fans, Boilers, Compressors, Blowers, Gear Box, Separators, Crushers, Mill Vibration, Generators, Turbines

SR LPS 100:

Single output piezo electric acceleration sensor.
AC output proportional to acceleration g.
X Y Z direction mountable.
Large operating temperature range and frequency response.
Various connector options

-------------------------------------------------------------------------------------------

PERFORMANCE
Measured Value	Acceleration
Sensitivity Range	500mV/g
Freq. Range	0.8-15000 Hz
ELECTRICAL
Working Resistance	≤200Ω
Settling time	2 sec
Supply Voltage	24 VDC
Case isolation	>108Ω at 500 Volts
MECHANICAL
Case Material	Stainless Steel
Sensing element	PZT / Compression
Mounting torque	8 N-m
Weight	125 gm (Nom)
ENVIRONMENTAL
Operating Temperature	- 55º …. + 140º C
Maximum Shock	5000 g
Sealing	IP68
Humidity	Max. 95 % , non-condensing
EMC	EN6 1326-1:2013

-------------------------------------------------------------------------------------------
