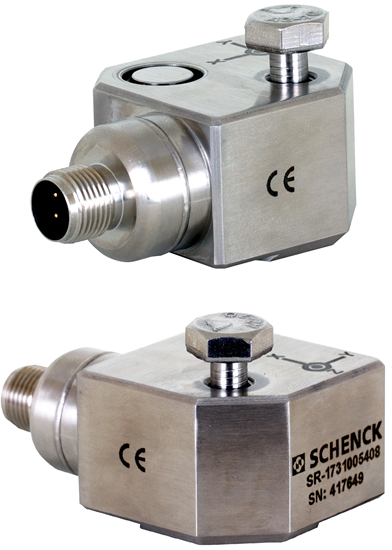

Vibration Accelerometer Triaxial Sensor SR 173

Application: Motors, Pumps, Fans, Boilers, Compressors, Blowers, Gear Box, Separators, Crushers, Mill Vibration, Generators, Turbines

SR LPS 173:

  • Capability to measure vibration of X Y Z direction with single sensor.
  • X Y Z direction mountable.
  • Large operating temperature range and frequency response.
  • AC output for proportional to vibration velocity.

->Download SR 173 Datasheet

-------------------------------------------------------------------------------------------

PERFORMANCE

Measured Value

Velocity

Sensitivity Range

100mV /mm / sec

Freq. Range

0.8-15000 Hz

ELECTRICAL

Working Resistance

≤200Ω

Settling time

2 sec

Supply Voltage

24 VDC

Case isolation

>108 at 500 Volts

MECHANICAL

Case Material

Stainless Steel

Sensing element

PZT / Compression

Mounting torque

8 N-m

Weight

235 gm (Nom)

ENVIRONMENTAL

Operating Temperature

- 55º …. + 130º C

Maximum Shock

5000 g

Sealing

IP68

Humidity

Max. 95 % , non-condensing

EMC

EN6 1326-1:2013

-------------------------------------------------------------------------------------------
