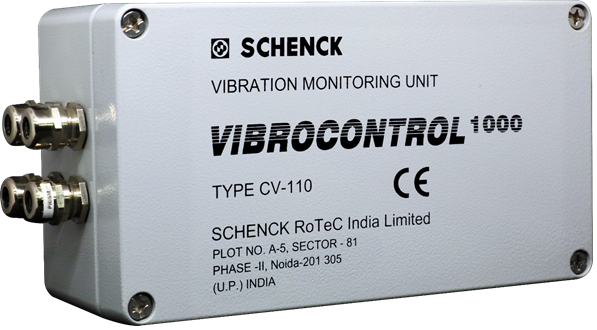

Single Channel Controller - CV110

Application: Motors, Pumps, Fans, Boilers, Compressors, Blowers, Gear Box, Separators, Crushers, Mill Vibration, Generators, Turbines

CV110:

  • Single Channel monitoring unit
  • Convert the pick-up signal into the parameter to be monitored (Vibration velocity/Displacement)
  • Output available are 0/4…20mA and 0-10VDC.
  • Self-test facility which trips the OK relay if there is any fault in the pick-up circuitry, and ensures that no false signal will process.
  • Two adjustable limit relays for alarm and trip.
  • Time delay facility for alarm and trip, relay to present false signal.

->Download CV-110 Datasheet

->Download VMS Catalog

-------------------------------------------------------------------------------------------

PERFORMANCE

Measured Value

RMS Value Velocity or Peak Value Displacement

Input

Single Channel with 2 relay O/P


Ranges

Velocity: 0-2/5/10/20/50 mm/Sec

Displacement: 0-20/50/100/200/500µm

Freq. Range

10-1000Hz

Analog Output

4-20mA

Accuracy

<3%

ELECTRICAL

Working Resistance

≤500Ω

Load Resistance

≥100KΩ

Supply Voltage

230/110V AC 50HZ or 24V DC

MECHANICAL

Case Material

Sturdy Aluminium

Dimension

235x120x90 mm L×W×H

Weight

2.26 Kg

ENVIRONMENTAL

Operating Temperature

- 30º …. + 65º C

Storage Temperature

- 40º …..+ 100º C

Sealing

IP65

Humidity

Max. 95 % , non-condensing

-------------------------------------------------------------------------------------------
